SIM-X 2023

Anticipating Generation/Transmission Emergencies & Preventing Equipment Damage

A NERC CEH Simulation Course

$500 per day

For the two day, 16-hour course

With 12 hours of simulation time

2023 | Times & Dates Available

2024 | Times & Dates Available

The 9/11 commission concluded “We believe the 9/11 attacks revealed four kinds of failures: in imagination, policy, capabilities and management.  It is therefore critical to find a way of routinizing, even bureaucratizing the exercise of imagination.”

SIM-X is an innovative and unique training opportunity for NERC-Certified operators including support staff, generator and substation operators, as well as IT and Cyber Security workers. During the 2-day event, operators remotely login to the class and the simulation, allowing participation from any time-zone, and allowing for cross-discipline training opportunities. Recent cyber-attacks on critical infrastructure systems of electric power, petroleum, natural gas, and water are raising concern across utility systems worldwide. From the cyber-attack in Ukraine 2015, to the most recent ransomware attack on a Colonial gasoline pipeline on the US East Coast, the frequency and severity of these attacks is only increasing. Organizations are compelled to prepare these attacks and invest in the resources to defend against cyber threat actors.

SIM-X is an opportunity to participate in realistic drills, similar to the annual Mojave Viper exercises conducted by the US Military, by taking on the roles of both attacker and defender. During these simulations, system operators are encouraged to find vulnerabilities in critical systems or infrastructure. Cyber defenders and other class participants get the opportunity to see how those vulnerabilities can be utilized to cause real, lasting harm to the system. Using that knowledge, participants can evaluate their own systems and determine how to harden defenses in their own organization.

NERC Certified power system operators will be drilled in worst case scenarios where a sophisticated Cyber Attacker has breached a BES Cyber System and is able to maliciously control power system elements.

This workshop will demonstrate how real-time power system simulations can be adapted to enhance a utility’s preparedness for responding to cyber-attacks.

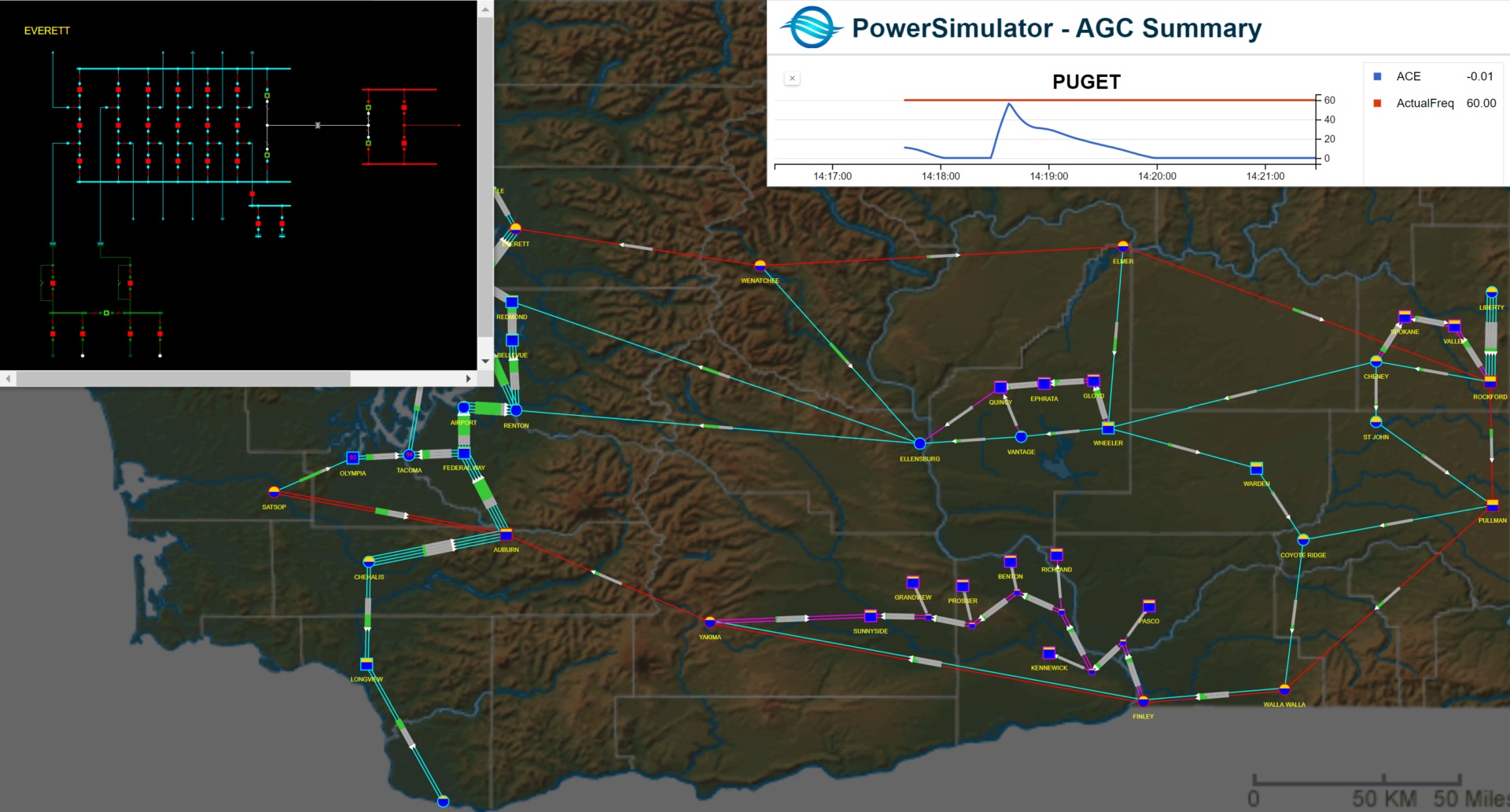

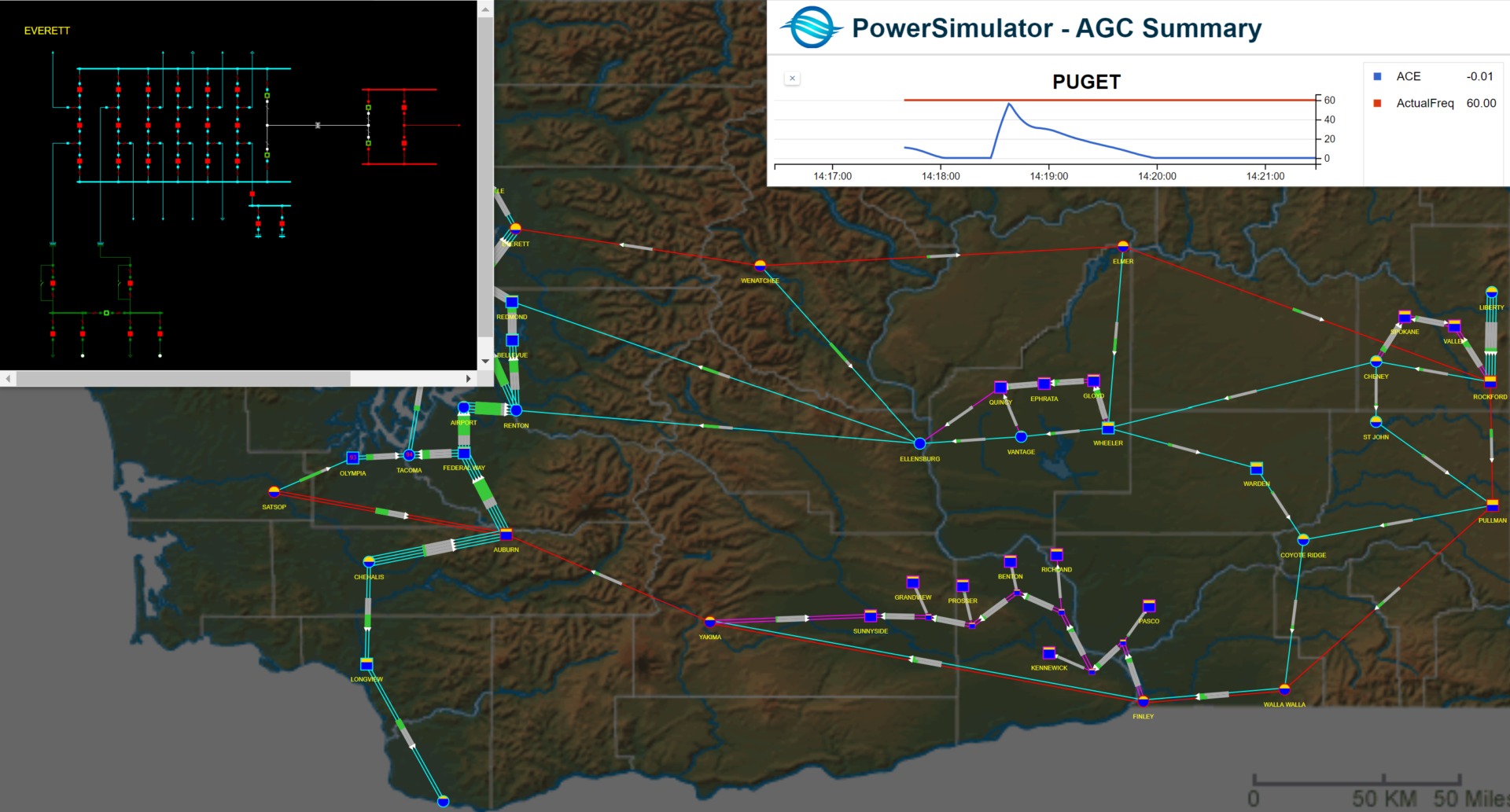

The drill participants will operate a hypothetical power system with hypothetical computer, communications and control systems layered on the geography of Washington State.

Day One: Generation and Transmission Emergencies

• How to operate PowerSimulator
• Managing a System with no EMS/SCADA
• Managing Thermal Overloads
• Capacity Emergencies
• Voltage Collapse Emergencies
• Angle Stability Emergencies
• Extreme Over-voltages

Day Two: Anticipating and Preventing Equipment Damage

• Ukraine Attacks
• Aurora Attack: C-RPA
• Generator Motoring Attack: C-GMA
• Standing Phase Angle Attack: C-SPA
• Malicious Ferranti Rise Attack: C-MFR
• Malicious Circulating MVAr Attack: C-MCM
• Carver Matrix
• Red Hat and Blue Hat Scenarios

Red Team vs Blue Team Drills

The blue team will the play roles of Reliability Coordinator, Transmission Operator, Balancing Authority Operator, Substation Operator and Generator Operator. The red team will play the role of a sophisticated cyber / physical attacker.

The objective of the blue team is to operate the system according to NERC Reliability Standards under normal, emergency and restorative operating conditions.

The red team will attempt to implement malicious control actions due to cyber breaches. The blue team will need to adapt the standard emergency operating procedures to present damage to equipment via over voltages, over loads, extreme shock torques and abnormal frequency violations.

Frederick the Great stated: “He who defends everything defends nothing.” The scenarios will be de-briefed using the CARVER analysis used by the military. This covers Criticality, Accessibility, Recuperability, Vulnerability, Effect and Recognizability.  In these debriefs cross training will take place between power system operators, cyber defenders and system protection experts.

The drills will take place across two days with a total of 16 hours of NERC CEH being provided.

Instructor

David Wilke

Principal Trainer

IncSys

For over 30 years David has primarily been involved with the development and delivery of both new and continuous operator training, real-time market implementation, and advanced application integration into the control room environment.



Listen to David Wilke and Robin Podmore discuss and demonstrate a SIM-X scenario:



Contact us for class availability, or if you would like to host a class virtually and train your entire department

We are also available for additional dates for the rest of the year to schedule courses based on customer demand.
